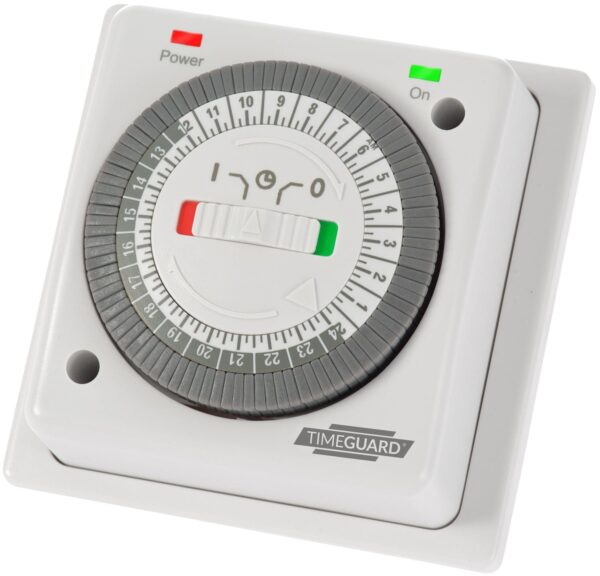

Timeguard 24hr Compact Immersion Time Switch – NTT01
Introducing the new range of compact timeswitches from Timeguard.
Features:
- 16(6)A load rating
- 96 quick-set segments for up to 48 ON/48 OFF programmes
- Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing
- Special ‘Traffic Light’ slider switch for easy ON (green), Auto (green & red) and OFF (red) mode indication
- Switches ON and OFF at preset times
- Easy to use captive segment dial
- Permanent ON/OFF control
- Fits a standard flush or surface mount box min 32mm deep
Specifications:
- Timer Mode: 24 Hour
- Setting Type: Segment
- Switch Rating 230V AC: 16A Resistive (3.68kW), Inductive 6A
- Stand-alone LED Rating: 100W
- Operating Temperature: 0°C to +40°C
- Cable Connection: 1.5 – 2.5mm2 Flexible Cable
- EC Directives: Conforms to Latest Directives
- Dimensions: Height: 80mm x Width: 75mm x Depth: 62mm
Criteria:
- Warranty: 3 Years
- Voltage: 230V AC
- Width: 75
- Height: 80
- Manufacturer Code: NTT01
- Barcode: 5012483012291
